KZ AM01 Portable Type-C DAC & Amplifier – Hi-Fi Audio Adapter

Product Description

The KZ AM01 Portable Decoding Amplifier is KZ’s first compact Type-C DAC + amplifier designed to deliver true Hi-Fi sound from your smartphone, tablet, or laptop. Powered by dual independent chips, it combines a high-performance DAC decoding chip with a professional amplifier IC, ensuring clean, powerful, and distortion-free audio output.

Supporting high-resolution audio up to 32-bit / 384kHz, the KZ AM01 transforms digital sound into rich, detailed analog output, allowing you to experience audio quality far beyond standard CD playback. Whether you’re listening to lossless music, watching videos, or gaming, the KZ AM01 ensures zero-latency audio-video synchronization for a smooth and immersive experience.

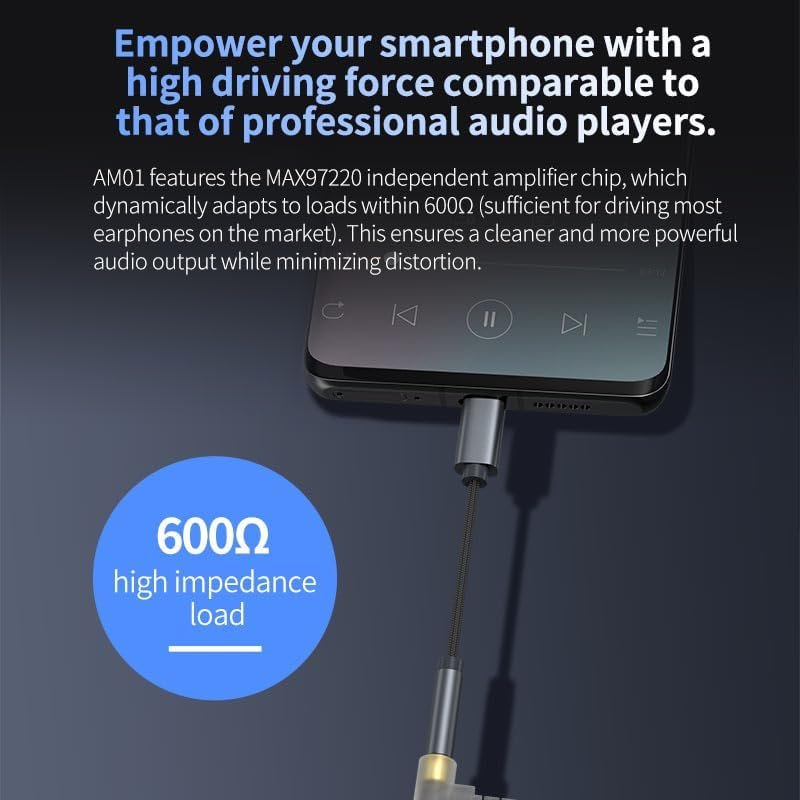

With a MAX97220 amplifier chip capable of driving headphones up to 600Ω impedance, this portable DAC is powerful enough for in-ear monitors and select over-ear headphones. Its Kevlar braided cable, lightweight design, and plug-and-play USB Type-C OTG compatibility make it a durable and convenient choice for everyday use.

Key Features

• Dual Independent Chips Design – Separate DAC decoding chip and amplifier IC for superior sound clarity and power

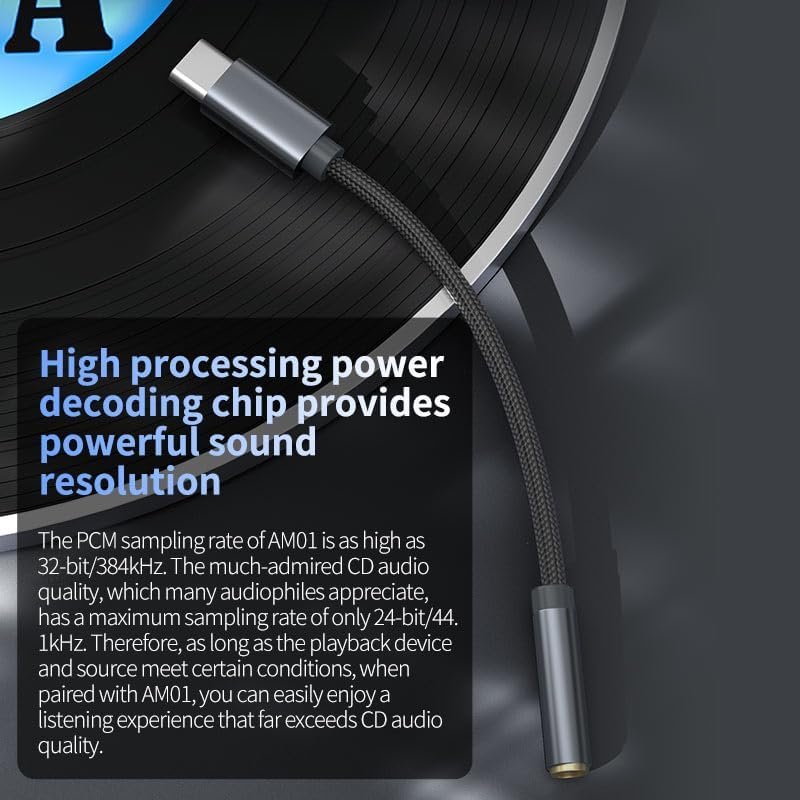

• Hi-Res Audio Support – PCM decoding up to 32-bit / 384kHz for studio-grade sound quality

• High Output Performance – Drives headphones up to 600Ω impedance

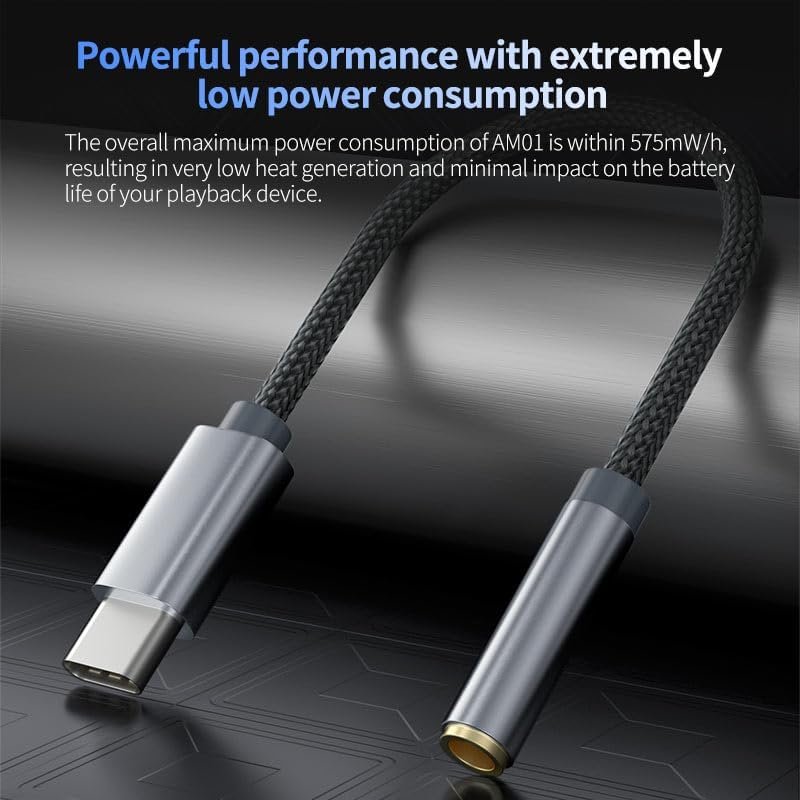

• Low Power Consumption – Efficient design minimizes heat and battery drain

• Zero Latency Audio – Perfect synchronization for gaming, videos, and streaming

• Kevlar Braided Cable – Durable, flexible, and travel-friendly

• Plug & Play Type-C OTG Support – No drivers or setup required

Technical Specifications

• Model: KZ AM01

• Input: USB Type-C (OTG supported)

• Output: 3.5mm Audio Jack

• Output Power: 1Vrms (30mW @ 32Ω)

• Impedance Range: ≥16Ω (Supports up to 600Ω loads)

• SNR: 110dB

• DNR: 110dB

• THD+N: -95dB

• Frequency Response: 20Hz – 20kHz

• DAC Decoding: Up to 32-bit / 384kHz

• ADC: Up to 96kHz / 24bit

• Cable Length: 110 ±10mm

• Power Consumption: Max 575mW/h

Compatibility

• Works with most USB Type-C smartphones, tablets, and laptops

• Plug-and-play functionality

• ⚠️ Note: Only supports Type-C devices with OTG functionality

Ideal For

• Audiophiles seeking portable Hi-Fi sound

• Mobile gamers needing zero-latency audio

• Users of high-quality IEMs and headphones

• Streaming, music playback, and video content
